XH-A43
Stainless steel US-style butt hinge, 2 ball bearings, non-removable pin
Photo shows a representative finish. Available in the finishes listed.

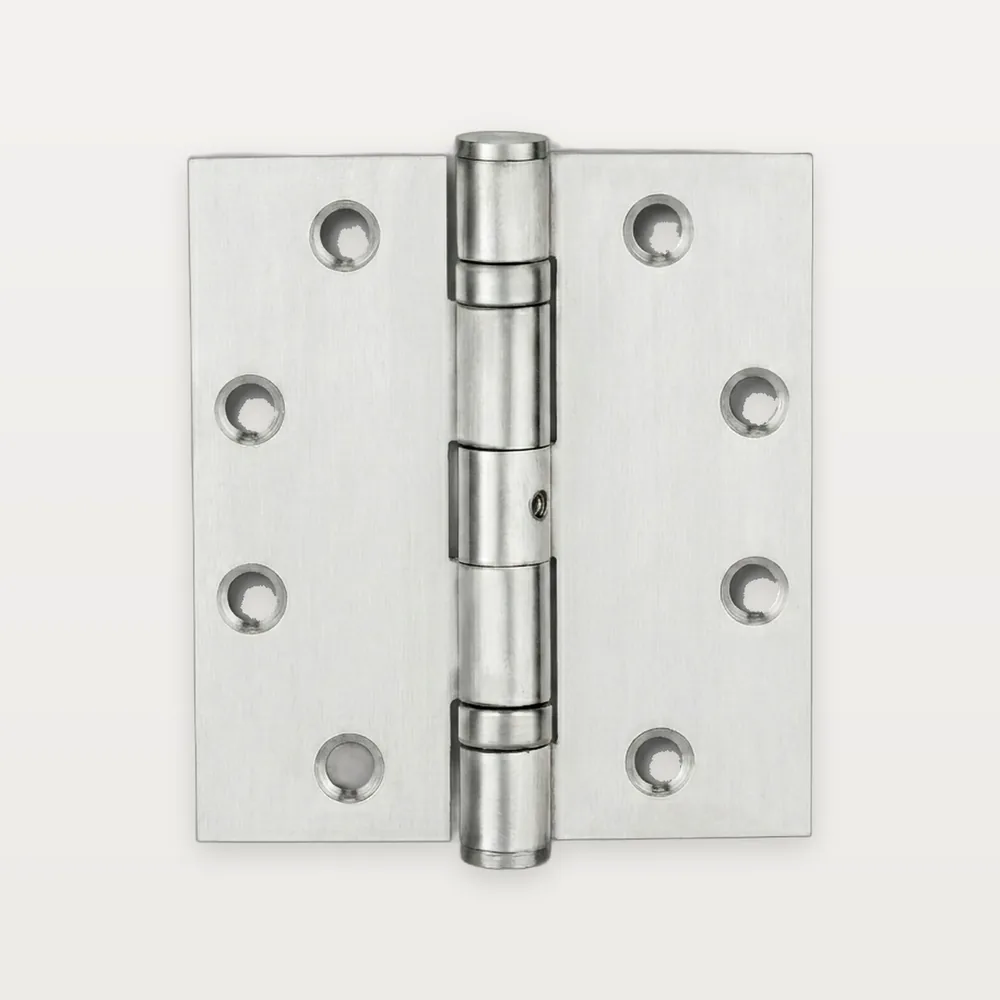

XH-A19
Stainless steel butt hinge, 2 ball bearings, non-removable pin
Stainless steel4.5" × 4"3.0–3.5 mm2 ball bearingsNRP
Specifications
| Model | XH-A19 |
|---|---|
| Category | Butt hinges |
| Material | Stainless steel The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote. |
| Sizes (H × W × leaf) |
|
| Leaf thickness | 3.0–3.5 mm (.118–.138") |
| Knuckle diameter | 14–15 mm |
| Bearings / washers | 2 ball bearings |
| Pin | Non-removable pin (NRP) |
| Finishes | PN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper |
| Custom colors | Available on request |
Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
